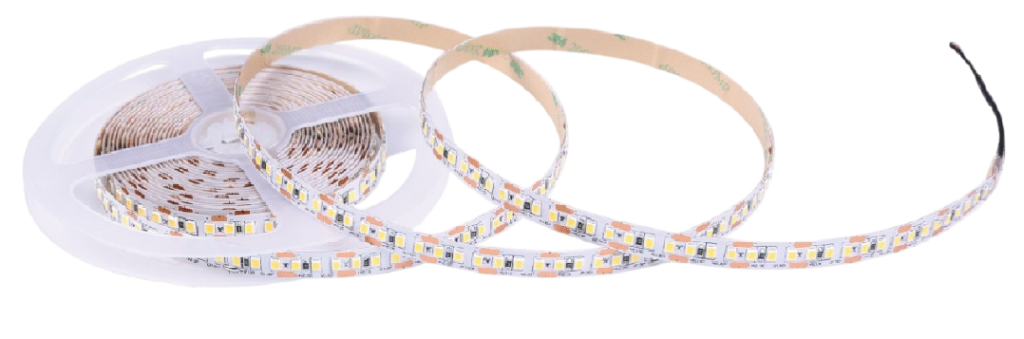

LED Strip Lights
NT-120L
- Power
- 15 W/m
- Voltage
- 24 V DC
- LEDs per metre
- 1206 per 50 mm cut
Colour temperature
- 2700 K
- 3000 K
- 4000 K
- 6500 K
Up close
The strip, to scale
Width, LED size and spacing drawn to the same scale. Every strip is shown at this scale, so they can be compared.
120 LEDs per metre · 6 LEDs every 50 mm cut · 5 m reel
Technical data
Specifications
Light
- Power
- 15 W/m
- Light colour
- Single colour
- CCT
- 2700K, 3000K, 4000K, 6500K
- CRI
- >80
Electrical
- Voltage
- 24 V DC
- LEDs per metre
- 120
- LEDs per cut
- 6
- Max. run
- 5 m from one end
- Controls
- On/Off, DALI, Zigbee, Bluetooth, Phase-cut, Analog
Size & installation
- Strip width
- 8 mm
- Cuttable every
- 50 mm
- Reel length
- 5 m
- Form
- Flexible
- IP rating
- IP20
- Suitable for
- Hospitality, Office, Residential, Retail
Controls
On/Off as standard| Protocol | Dimming | Tunable white |
|---|---|---|
| DALI | ●Yes | —No |
| Zigbee | ●Yes | —No |
| Bluetooth | ●Yes | —No |
| Phase-cut | ●Yes | —No |
| Analog | ●Yes | —No |
